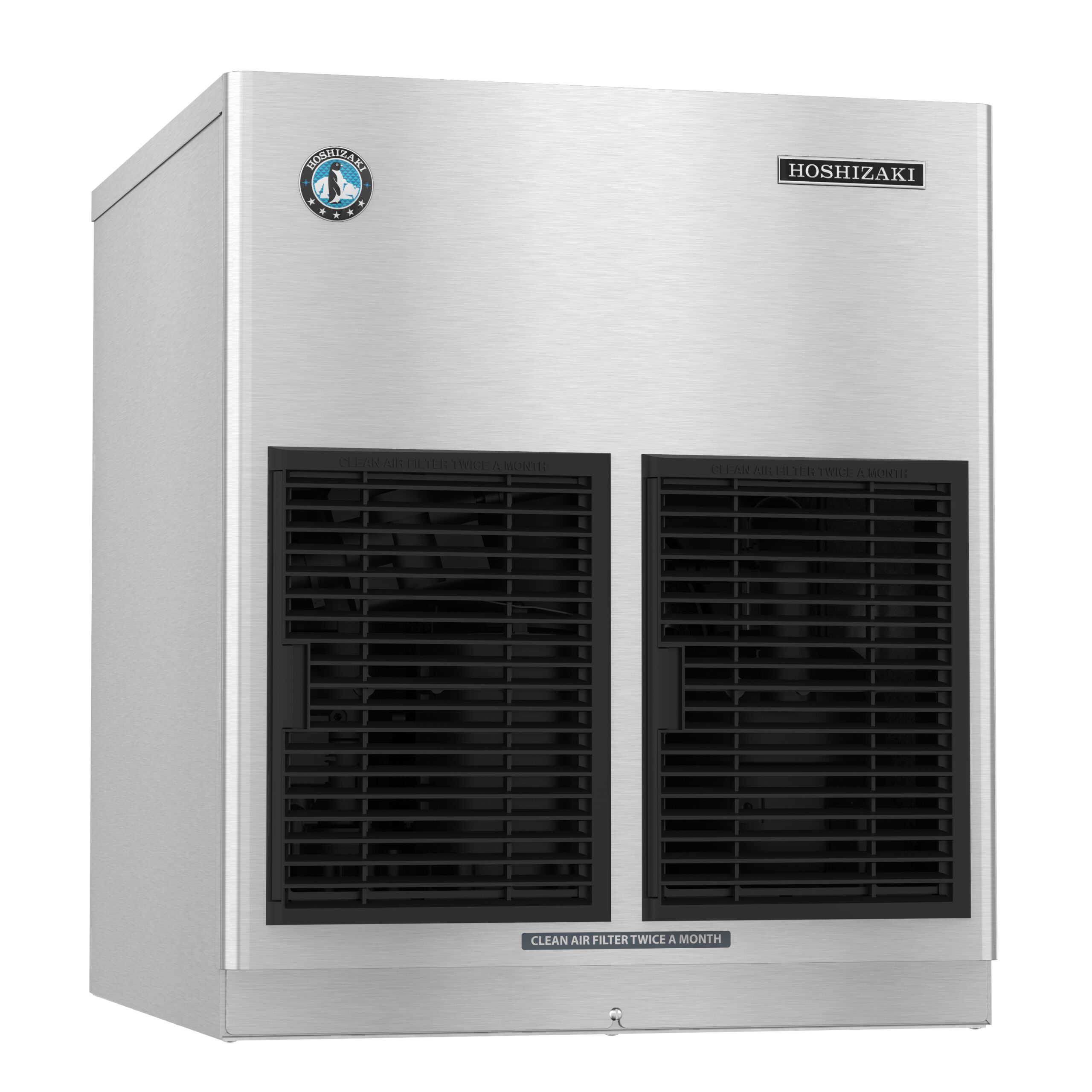

FD-1002MRJ-C with URC-5F, Cubelet Icemaker, Remote-cooled

Dimensions: 22″ W x 24″ D x 26″ H
Up to 821 lbs of ice produced per 24 hours
Remote-cooled with URC-5F
Produces small cubelet nugget-style ice
Durable stainless steel exterior

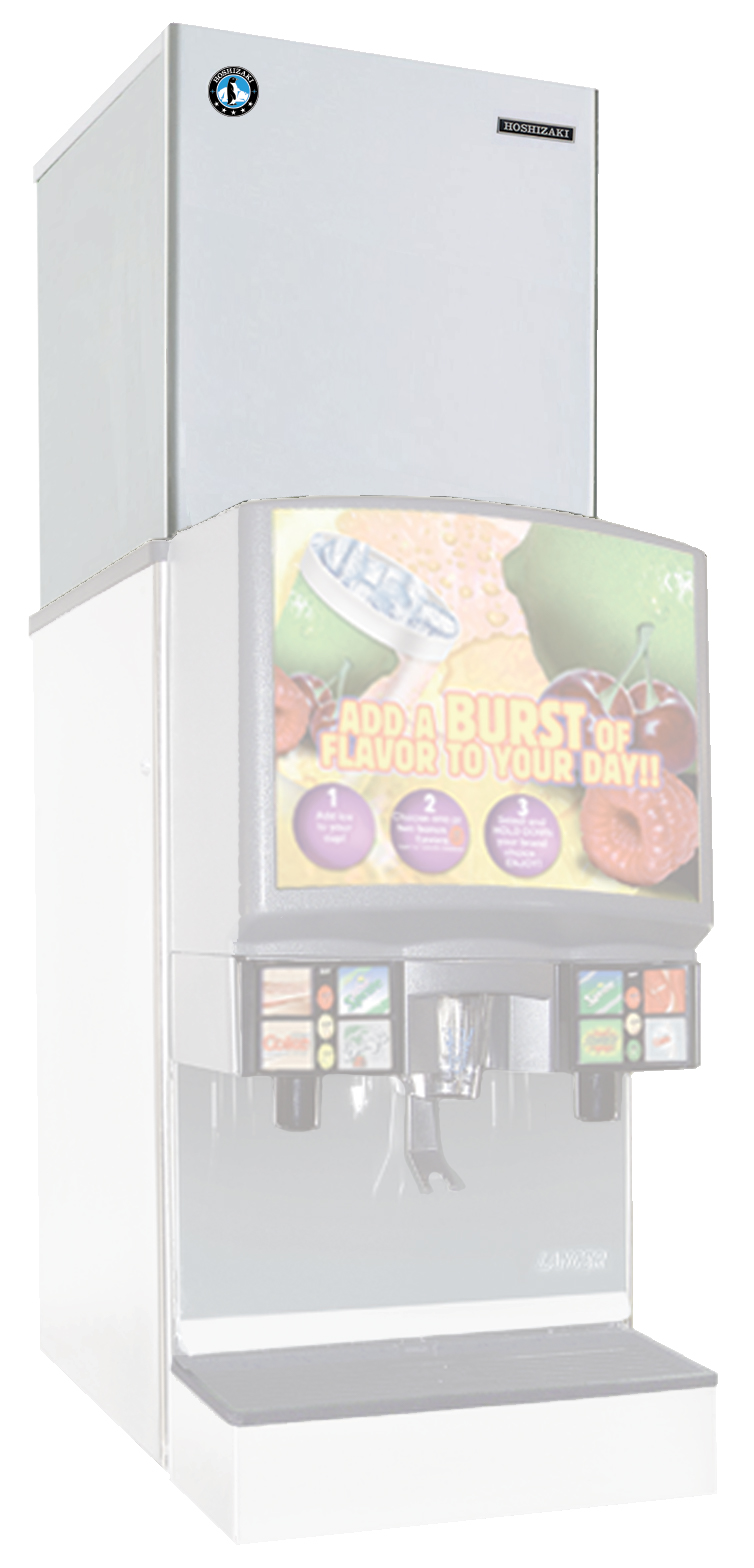

Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
2 second rinse every hour to remove sediment
Advanced CleanCycle24™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (2 lbs. 4 oz. / 1025 g)
Heat Rejection:8500 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
13.7 amps (20 Amp Max fuse)
4.94 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

SKU: FD-1002MRJ-C Categories: Cubelet, Dispenser Series, Ice, Ice Maker, Modular, Remote AC Tag: Ice on Beverage

Resources

Videos

Description

The FD-1002MRJ-C is capable of producing approximately 821 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-5F icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-1002MRJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. Please consult the Specification Sheet for additional details.

Additional Information

Weight	205 lbs
Dimensions	28.5 × 26.75 × 31.5 in
height	26
width	22
depth	24
shipping-weight	205
warranty	Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
certifications	NSF, UL Listed
energy-star-qualified	No
electrical-specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 13.7, Max Fuse/HACR Breaker: 20 A
plumbing-specs	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
utility-consumption	4.94 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
operating-limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8500 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 4 oz. / 1025 g
