IM-500SAB, Square Cuber Icemaker, Air-cooled

Dimensions: 44″ W x 27-5/8″ D x 21-3/4″ H
Up to 489 lbs of ice produced per 24 hours

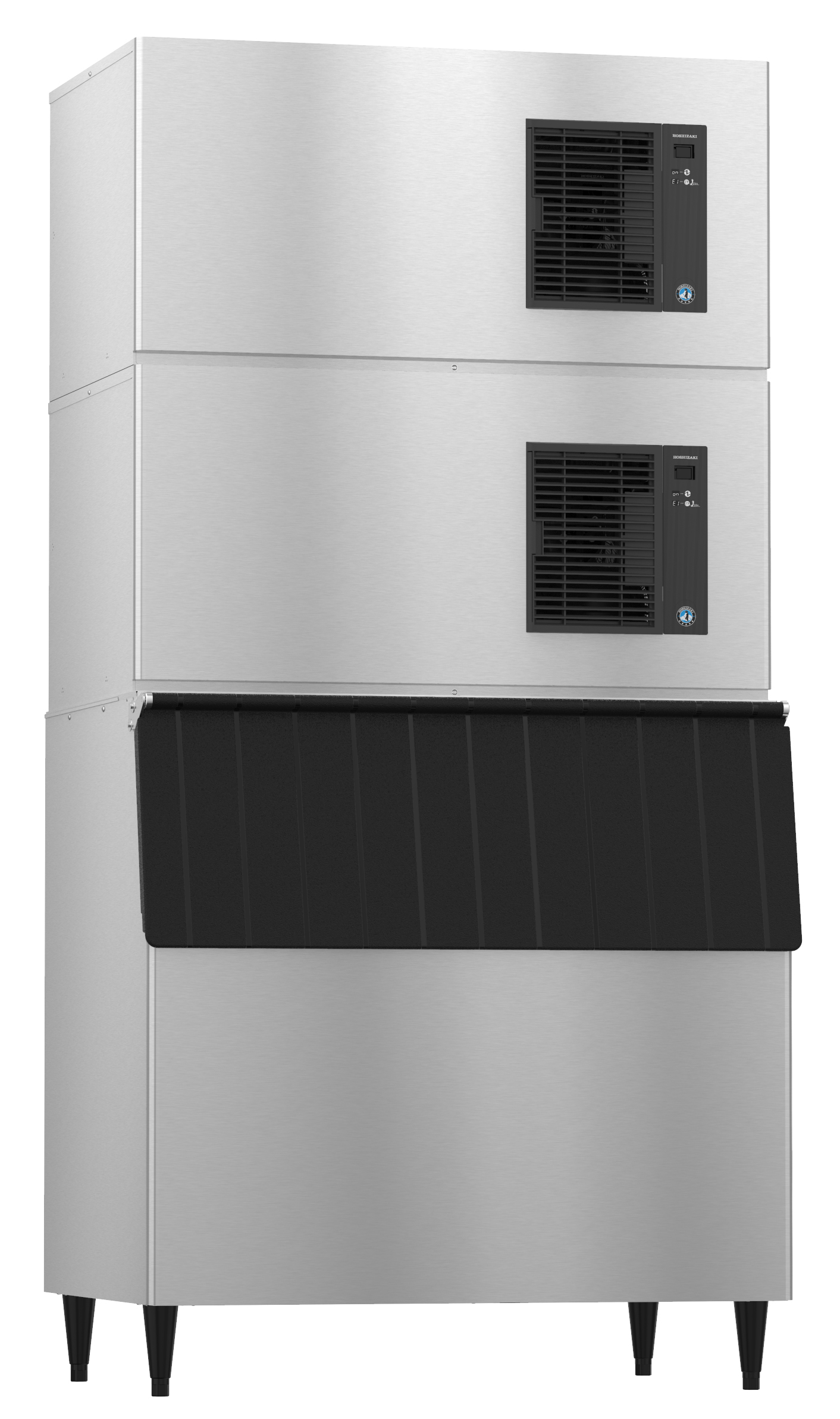

Stack 3 units for 3x the ice production

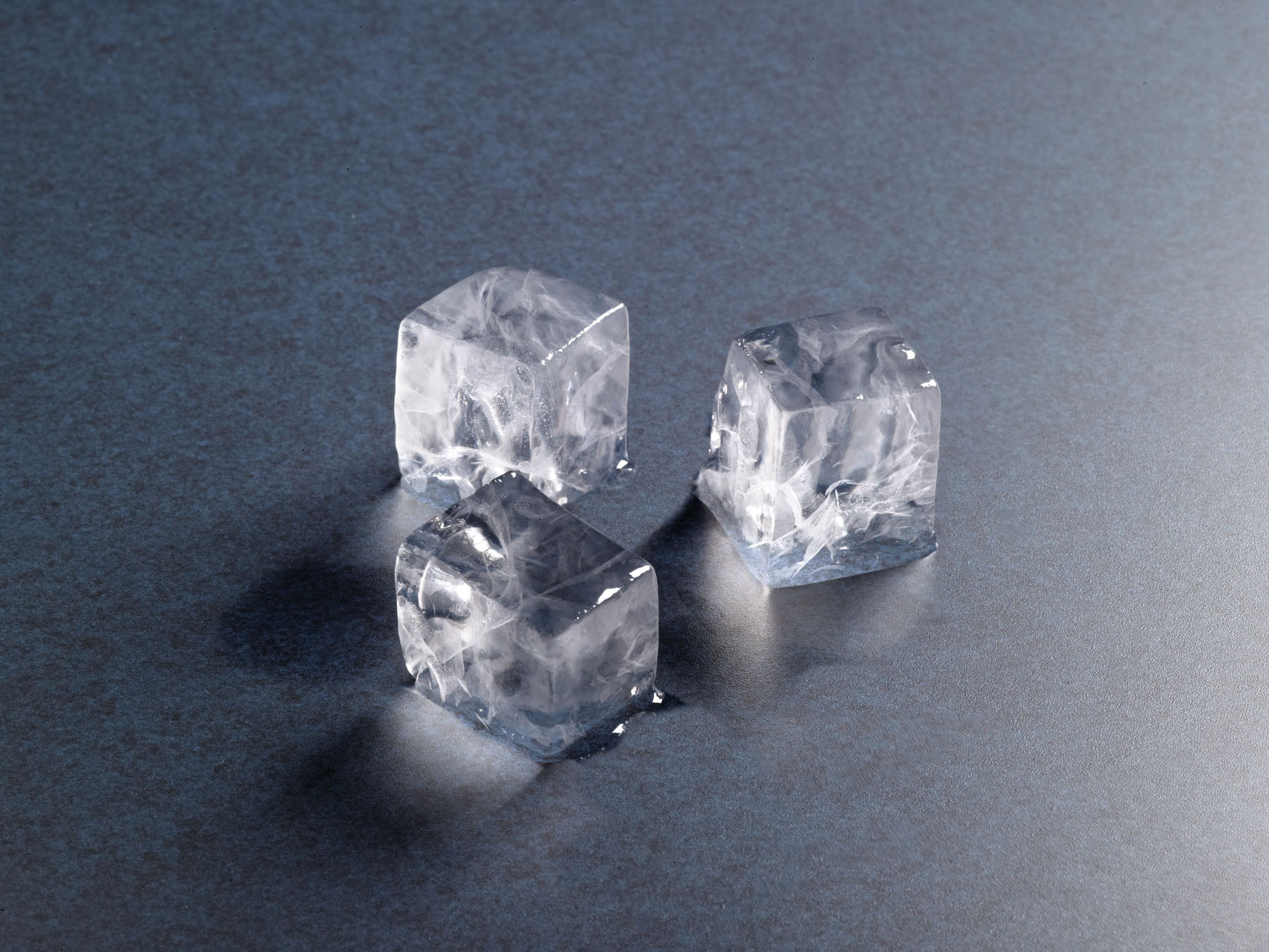

Produces individual square cubes
Durable stainless steel exterior

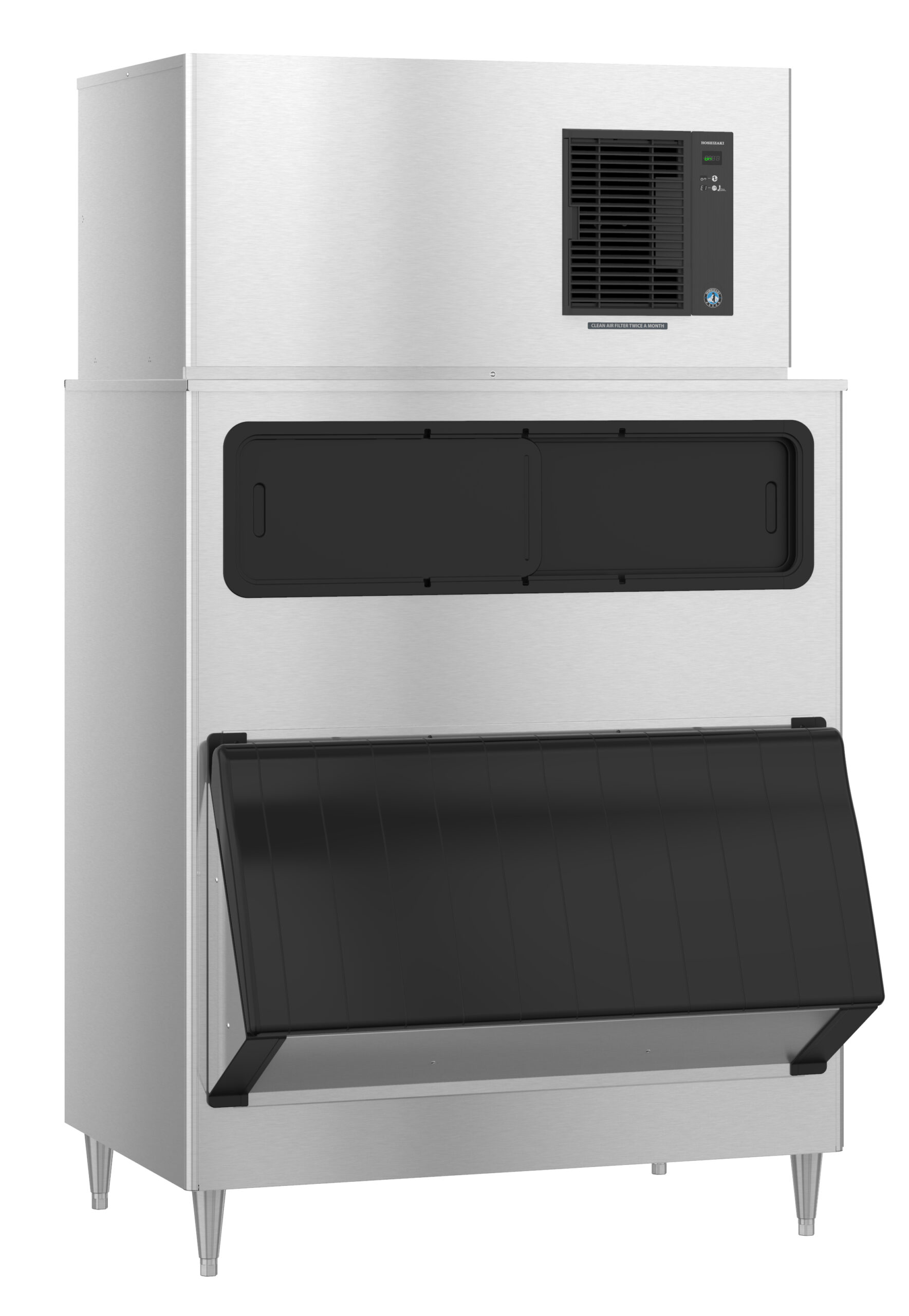

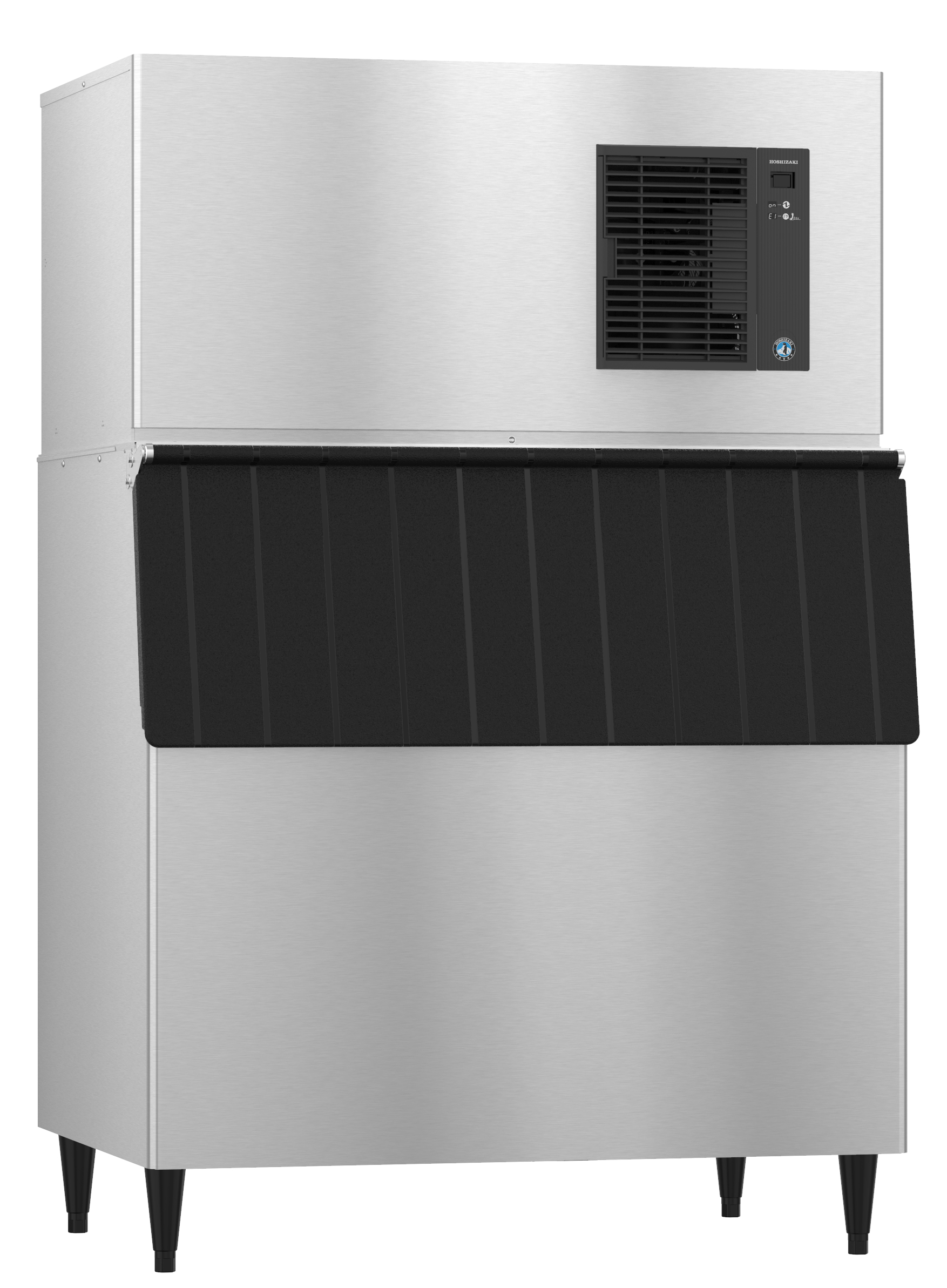

Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ digital control system with LED display
Clean individual square ice cubes
Panels easily removed and all components accessible for service
R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
Heat Rejection:4500 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
11.5 amps (20 Amp Max fuse)
5.8 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

SKU: IM-500SAB Categories: Ice, Ice Maker, Square Cuber

Resources

Videos

Description

The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Additional Information

Weight	230 lbs
Dimensions	48.875 × 33.5 × 27.5 in
height	21.75
width	44
depth	27.625
shipping-weight	230
warranty	Three Years: Parts & Labor warranty on entire machine.
certifications	NSF, UL Listed, AHRI Standard 810, Conformité Européenne
energy-star-qualified	No
electrical-specs	Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included, Amperage: 11.5, Max Fuse/HACR Breaker: 20 A
plumbing-specs	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
utility-consumption	5.8 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
operating-limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 4500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz. / 751
