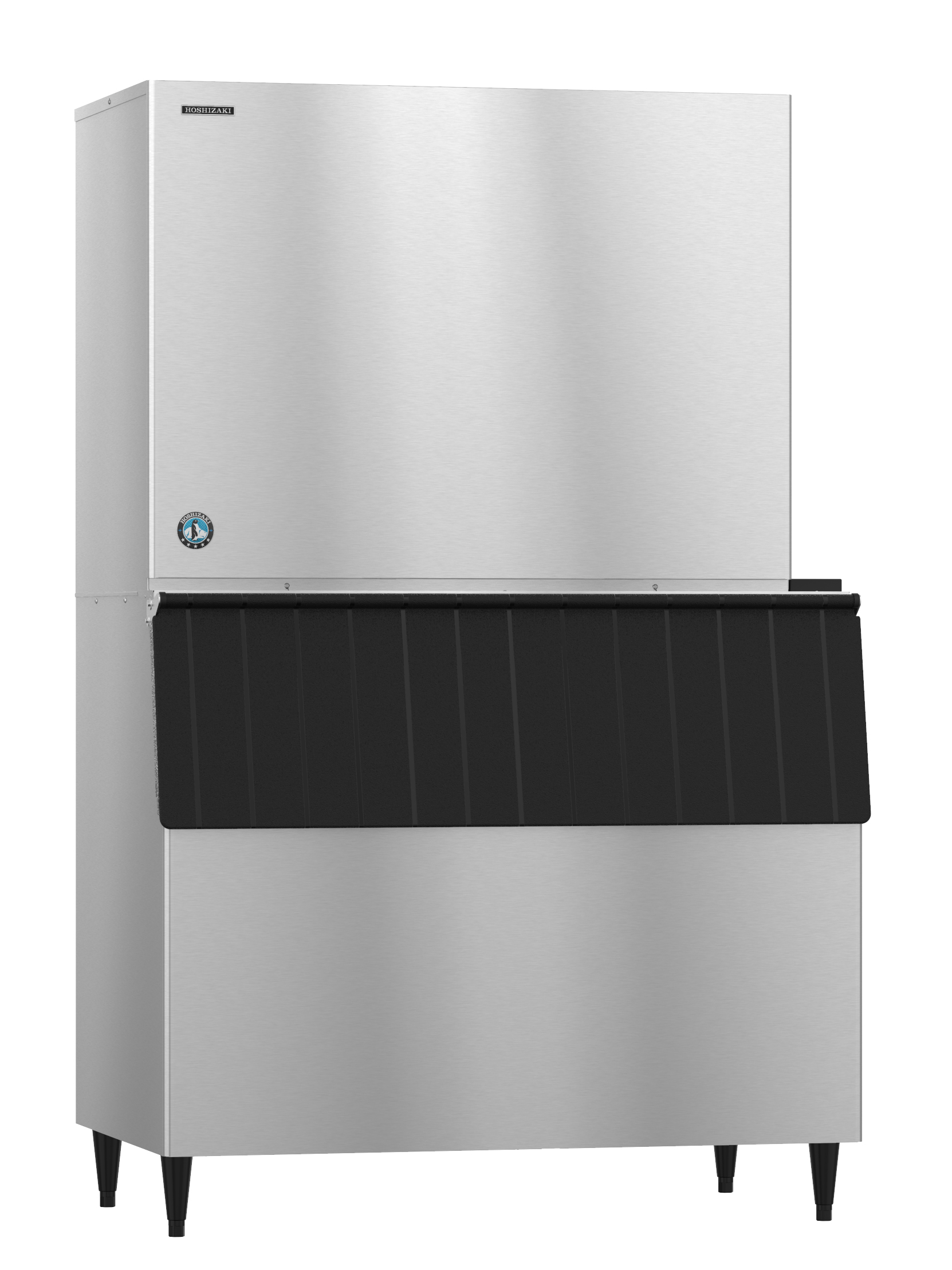

KM-2200SRJ3 with URC-22F, Crescent Cuber Icemaker, Remote-cooled, 3 Phase

Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
Up to 2115 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
10.5 amps (20 Amp Max fuse)
4.16 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

SKU: KM-2200SRJ3 Categories: Crescent Cuber, Ice, Ice Maker, Remote AC, Stackable Tags: 3phase, KM Edge

Resources

Videos

Description

The KM-2200SRJ3 is capable of producing approximately 2115 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22F icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2200SRJ3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. Replaces KM-2100SRH3 and KM-2100SRJ3.

Additional Information

Weight	400 lbs
Dimensions	51.75 × 33 × 42.5 in
height	36.4375
width	48
depth	27.375
shipping-weight	400
warranty	Five Years: Parts warranty on Compressor, air-cooled condenser coil., Three Years: Parts & Labor warranty on entire machine.
certifications	NSF, UL Listed, ENERGY STAR® Qualified
energy-star-qualified	Yes
electrical-specs	Three phase, 208-230v/60/3 , Amperage: 10.5, Max Fuse/HACR Breaker: 20 A
plumbing-specs	1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
utility-consumption	4.16 kWh per 100 lbs @ 90/70, 19 gal of Potable Water per 100 lbs @ 90/70
operating-limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 6 oz. / 3800 g)
