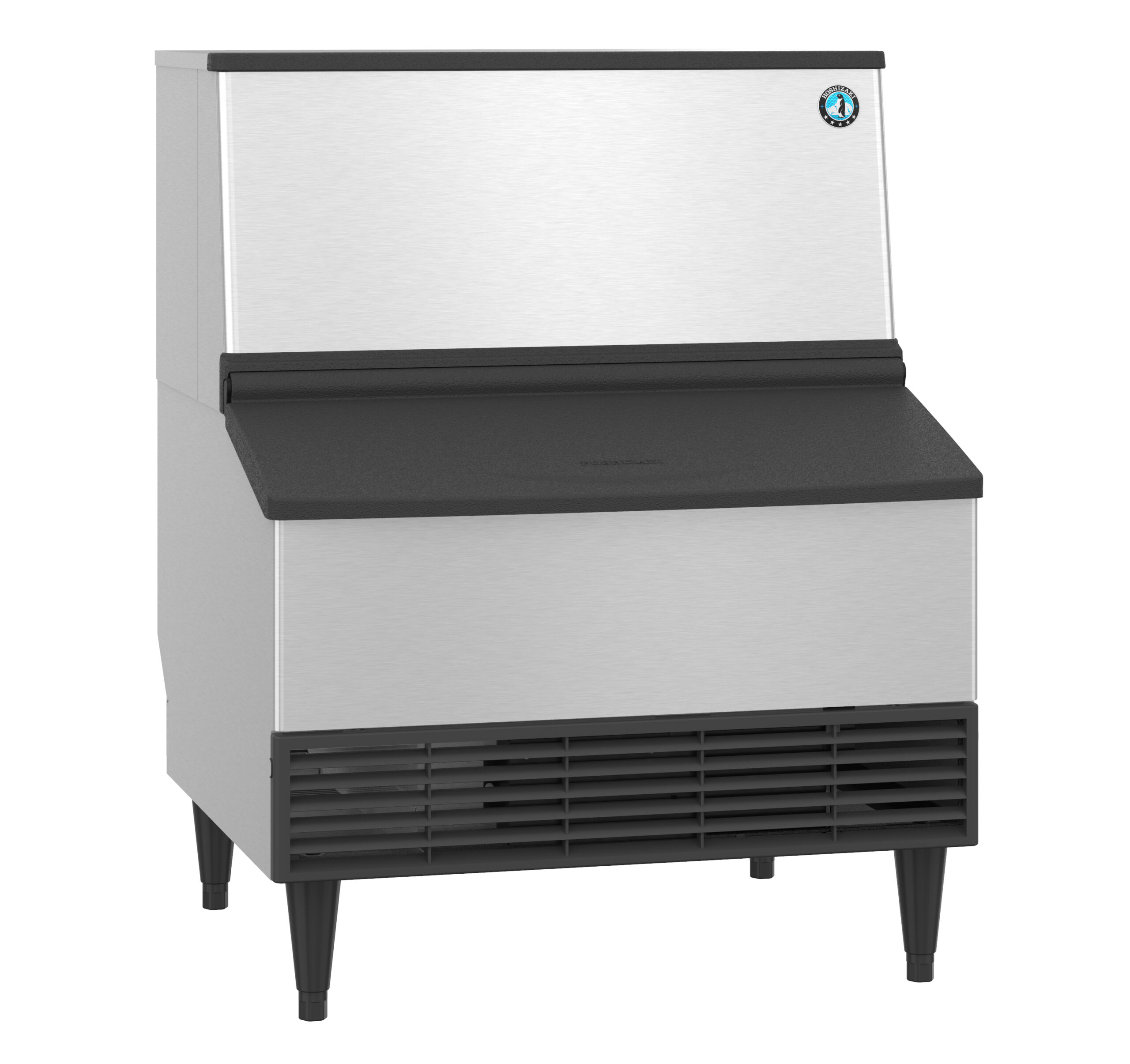

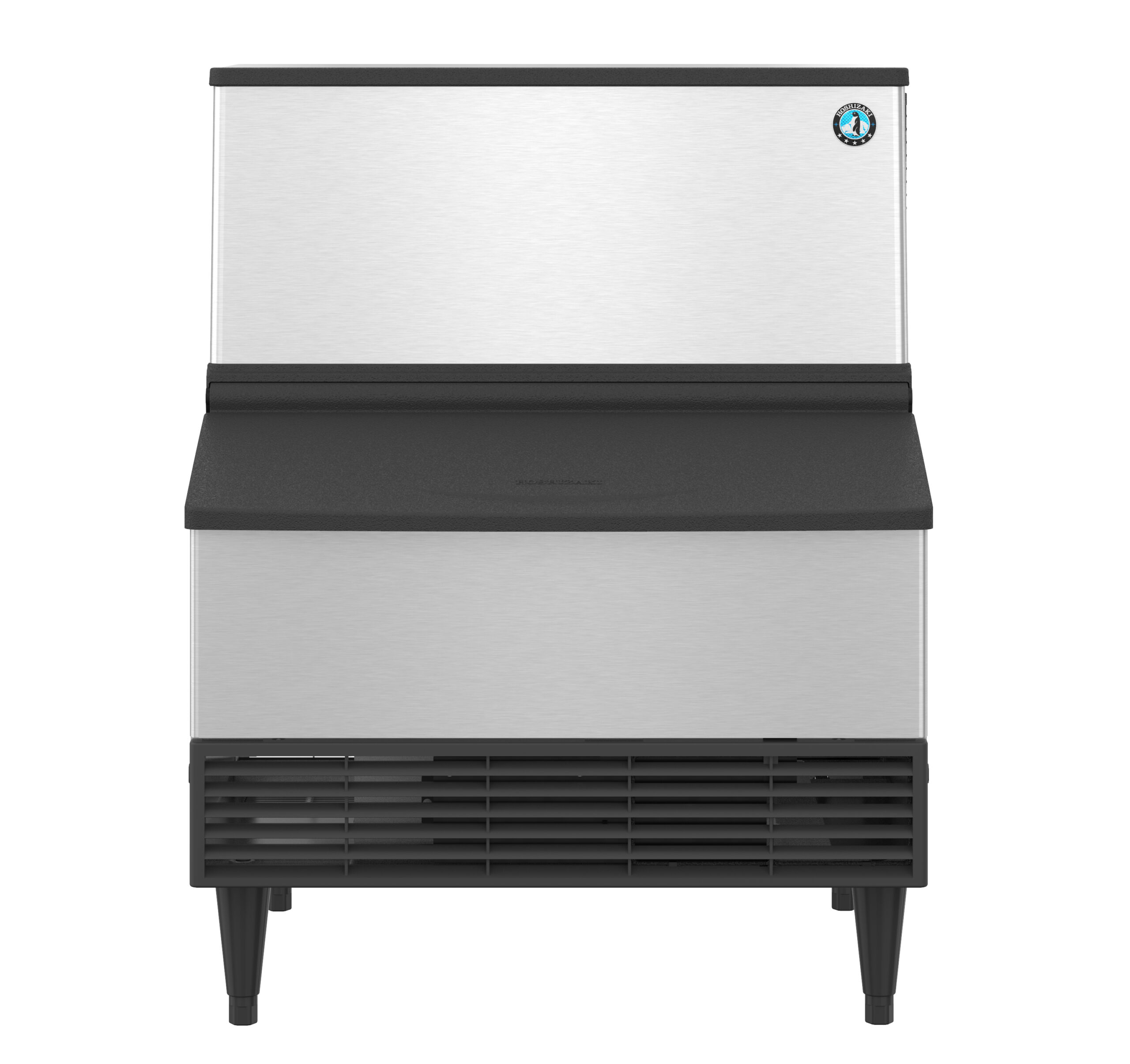

KM-301BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

  • Dimensions: 30″ W x 28″ D x 39″ H
  • Up to 290 lbs of ice produced per 24 hours
  • Up to 100 lbs of built-in storage capacity (3.3ft3)
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Front in, front out airflow
  • EverCheck™ alert system
  • CycleSaver™ design
  • Ice bin opening is ADA compliant
  • R-404A refrigerant (13.4 oz. / 380 g)
  • Heat Rejection:4200 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 8.4 amps (15 Amp Max fuse)
  • 7.1 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
