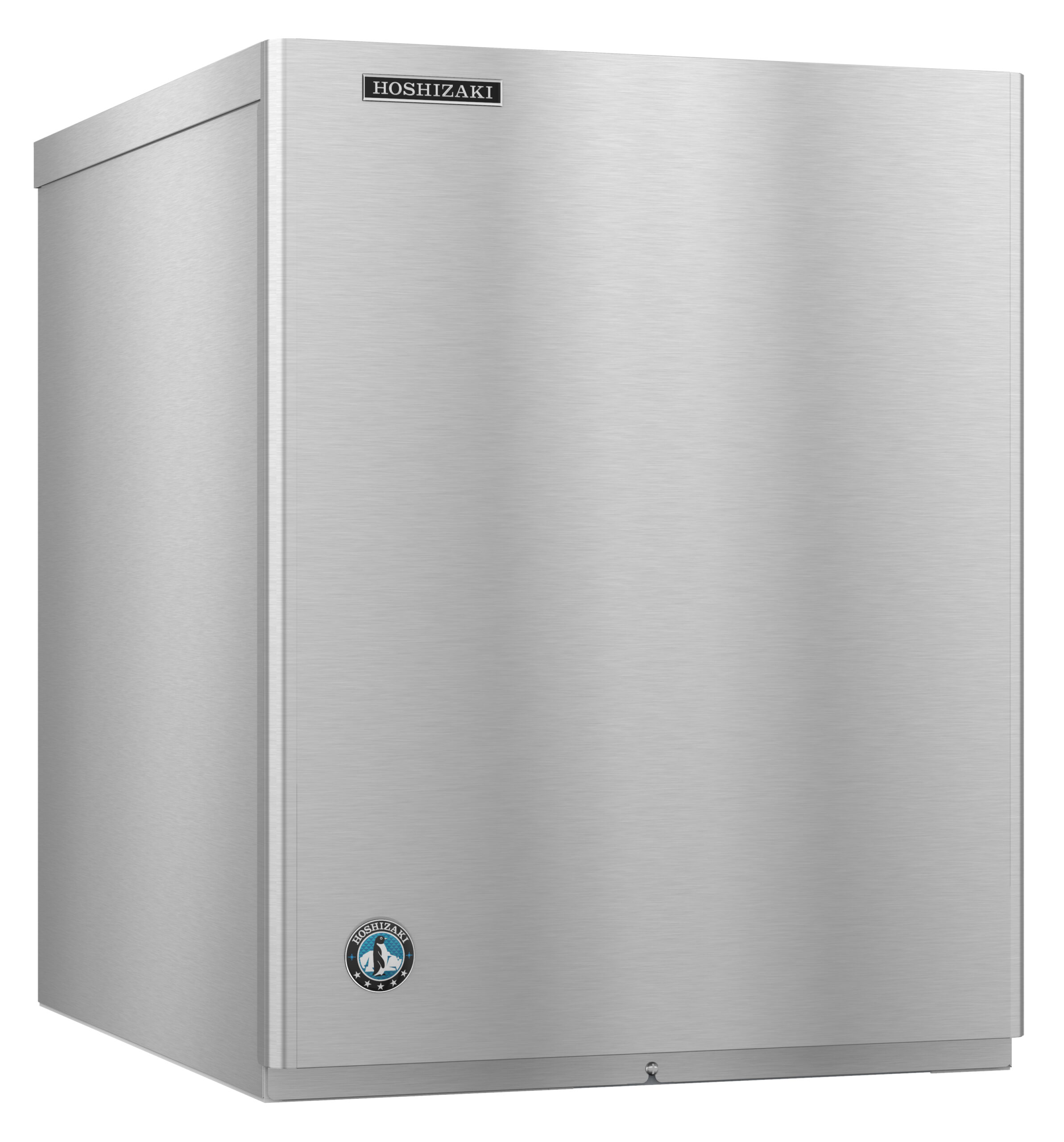

KM-660MWJ, Crescent Cuber Icemaker, Water-cooled

Dimensions: 22″ W x 27-3/8″ D x 28″ H
Up to 669 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

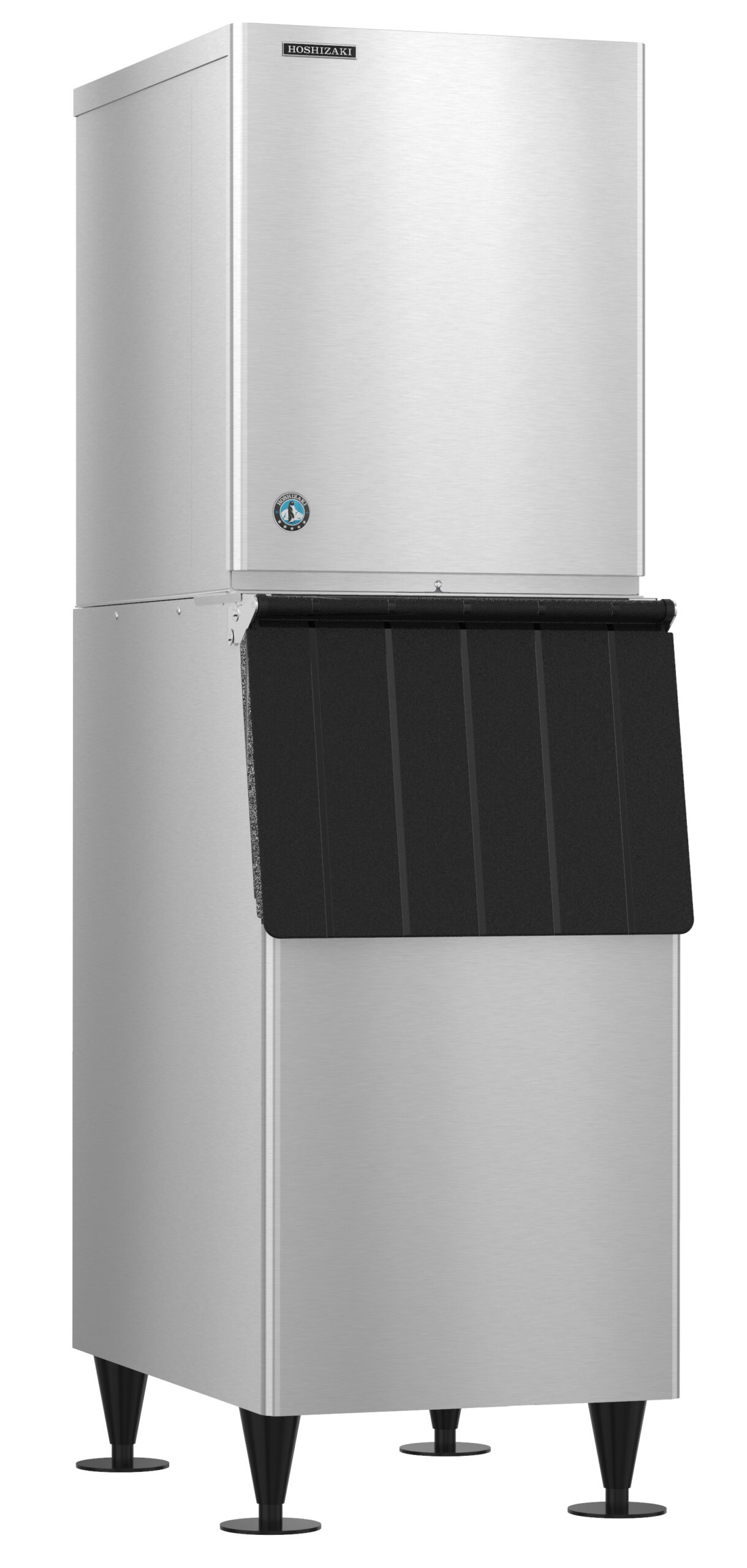

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
EverCheck™ alert system
CycleSaver™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (15.2 oz. / 431 g)
Heat Rejection:11100 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
12.35 amps (20 Amp Max fuse)
4.28 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

SKU: KM-660MWJ Categories: Crescent Cuber, Ice, Ice Maker, Modular, Water-Cooled Tag: KM Edge X Series

Resources

Videos

Description

The KM-660MWJ is capable of producing approximately 669 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Slim Line Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-660MWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. Replaces KM-650MWJ.

Additional Information

Weight	180 lbs
Dimensions	33 × 25.25 × 34.5 in
height	28
width	22
depth	27.375
shipping-weight	180
warranty	Five Years: Parts warranty on Compressor, air-cooled condenser coil., Three Years: Parts & Labor warranty on entire machine.
certifications	NSF, UL Listed
energy-star-qualified	No
electrical-specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 12.35, Max Fuse/HACR Breaker: 20 A
plumbing-specs	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT Outlet, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalen
utility-consumption
operating-limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 11100 BTU/hr, Refrigerant Charge: R-404A, (15.2 oz. / 431 g)
