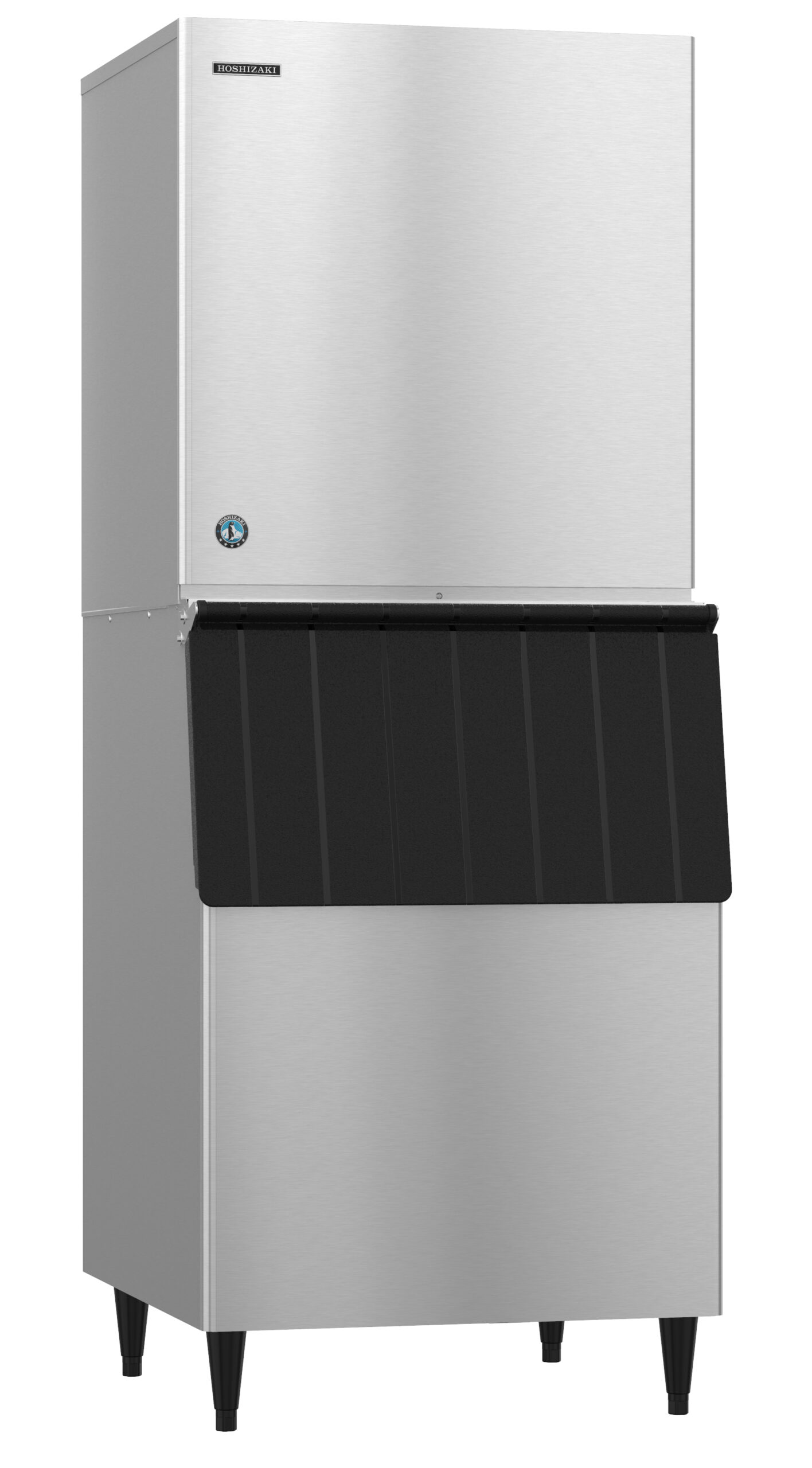

KM-901MWJ, Crescent Cuber Icemaker, Water-cooled

Dimensions: 30″ W x 27-3/8″ D x 32-1/2 ” H
Up to 950 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (1 lbs. 14 oz. / 850 g)
Heat Rejection:12700 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
10 amps (20 Amp Max fuse)
3.6 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

SKU: KM-901MWJ Categories: Crescent Cuber, Ice, Ice Maker, Modular, Water-Cooled Tag: KM Edge

Resources

Videos

Description

The KM-901MWJ is capable of producing approximately 950 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-901MWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-901MWH.

Additional Information

Weight	255 lbs
Dimensions	33.5 × 33.25 × 38.75 in
height	32.5
width	30
depth	27.375
shipping-weight	255
warranty	Five Years: Parts warranty on Compressor, air-cooled condenser coil., Three Years: Parts & Labor warranty on entire machine.
certifications	NSF, UL Listed
energy-star-qualified	No
electrical-specs	Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 10, Max Fuse/HACR Breaker: 20 A
plumbing-specs	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT Outlet, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalen
utility-consumption	3.6 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
operating-limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 12700 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 14 oz. / 850
