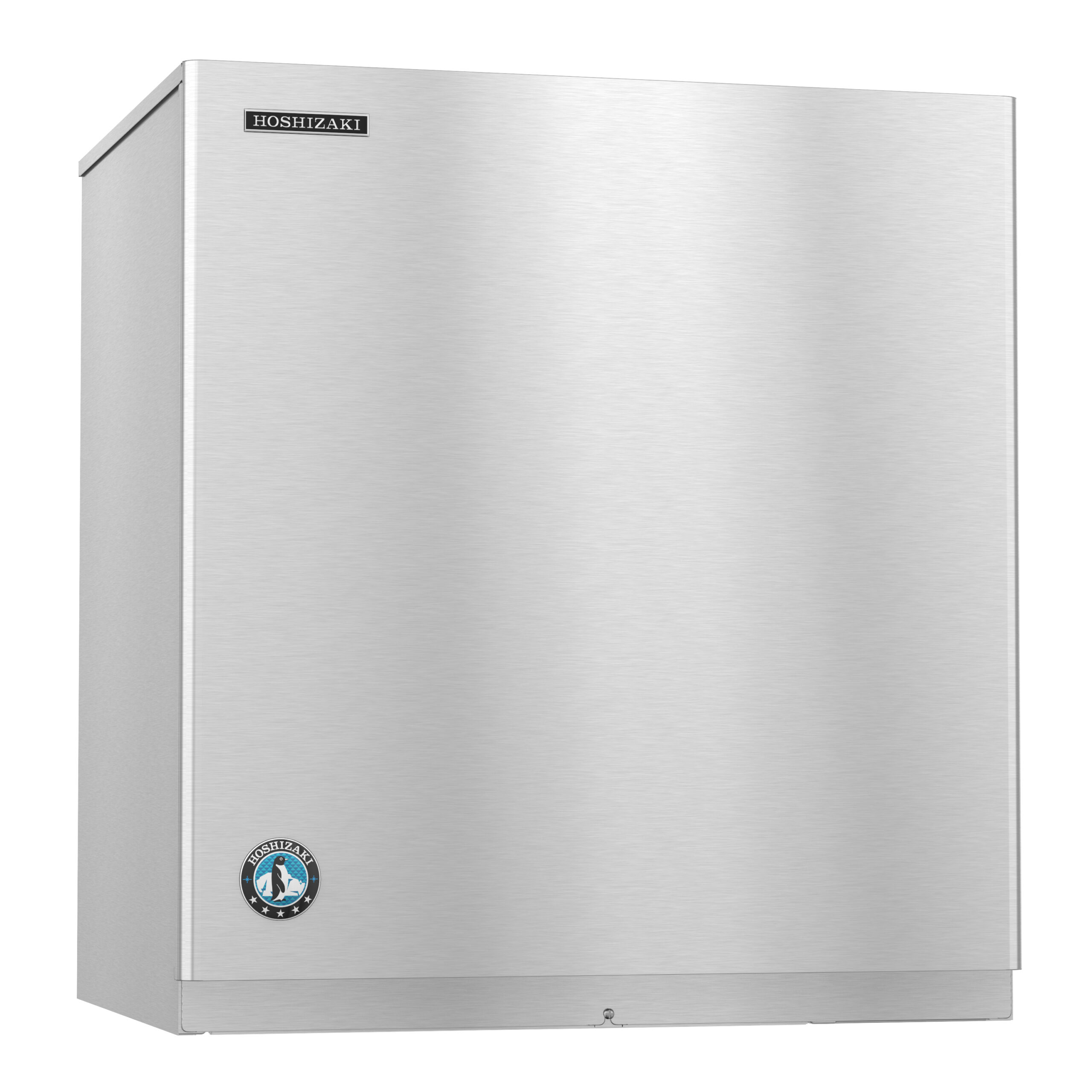

KMS-2000MLJ with SRK-20J, Crescent Cuber Icemaker, Remote-cooled, Serenity Series

Dimensions: 30″ W x 24″ D x 32-7/8″ H
Up to 1861 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers
EverCheck™ alert system
CycleSaver™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (7.1 oz. / 201 g)
Heat Rejection:31200 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
23.3 amps (30 Amp Max fuse)
7.1 kwh/100 lbs.@ 90/70
Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

SKU: KMS-2000MLJ Categories: Crescent Cuber, Ice, Ice Maker, Modular, Remote AC Tag: KM Edge

Resources

Videos

Description

The KMS-2000MLJ with SRK-20J remote condenser is capable of producing approximately 1861 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled with SRK-20J icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-2000MLJ requires a Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, Beverage Dispensers. Please consult the Specification Sheet for additional details.

Additional Information

Weight	205 lbs
Dimensions	33.5 × 33.25 × 39 in
height	32.875
width	30
depth	24
shipping-weight	205
warranty	Five Years: Parts warranty on Compressor, air-cooled condenser coil., Three Years: Parts & Labor warranty on entire machine.
certifications	NSF, UL Listed
energy-star-qualified	No
electrical-specs	Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser, Amperage: 23.3, Max Fuse/HACR Breaker: 30 A
plumbing-specs	1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
utility-consumption	7.1 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70
operating-limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 31200 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 201 g)
